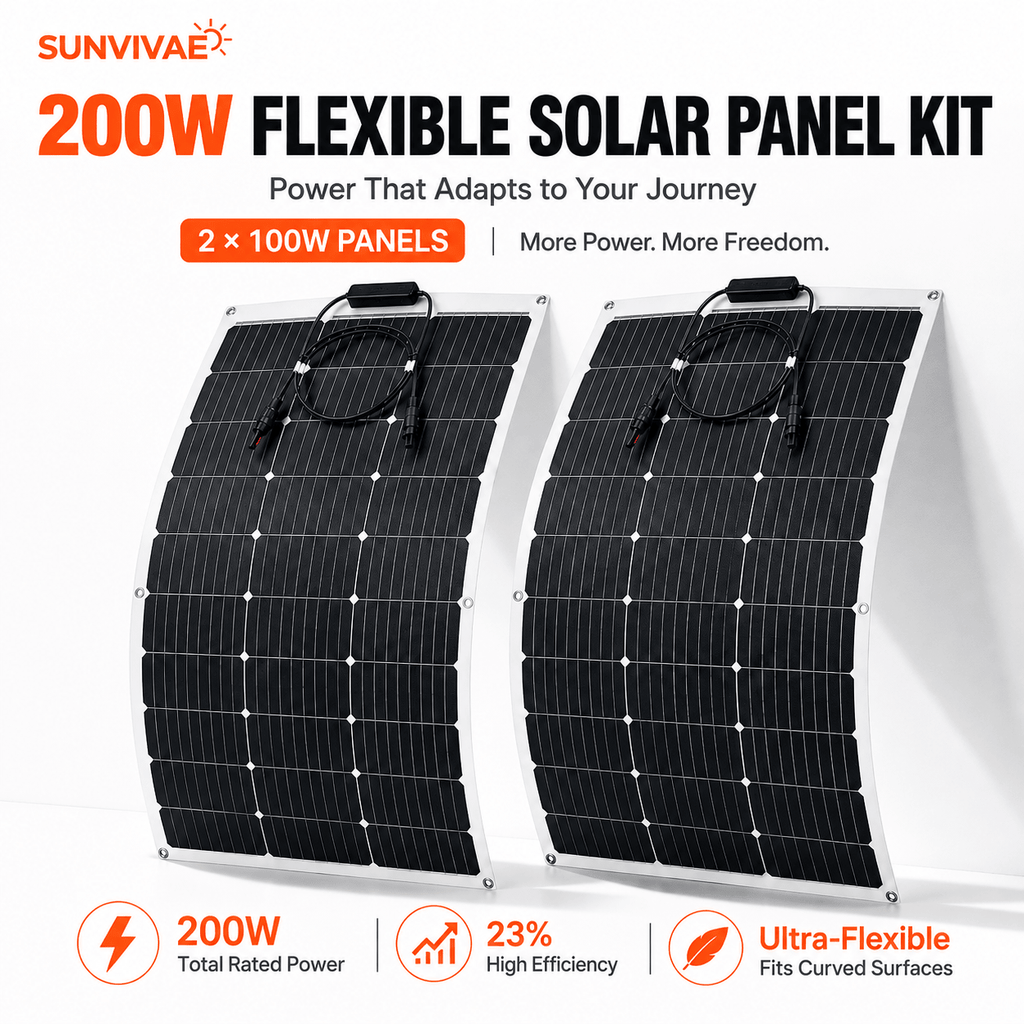

Sunvivae 200W Flexible Solar Panel Kit – 2 × 100W 12V ETFE Monocrystalline Panels
Sunvivae 200W Flexible Solar Panel Kit – 2 × 100W 12V ETFE Monocrystalline Panels
200W Total Solar Power · 2-Panel Set
Flexible Power for Curved Adventures
Two ultra-slim 100W flexible solar panels bring lightweight, space-saving solar generation to RVs, boats, vans, cabins and other compatible off-grid systems.
Solar charge controller, mounting materials, extension cables and batteries are not included unless expressly shown in your selected package.
What You Get
Two Flexible 100W Panels
- 200W combined rated solar capacity
- Two independent pre-wired modules
- Flexible options for larger mounting areas
- Series or parallel system expansion
Charge controller, battery, mounting adhesive, extension wiring and branch connectors are not included unless expressly stated in the selected package.
Designed to Fit More Places
Rigid Panels Cannot Go Everywhere

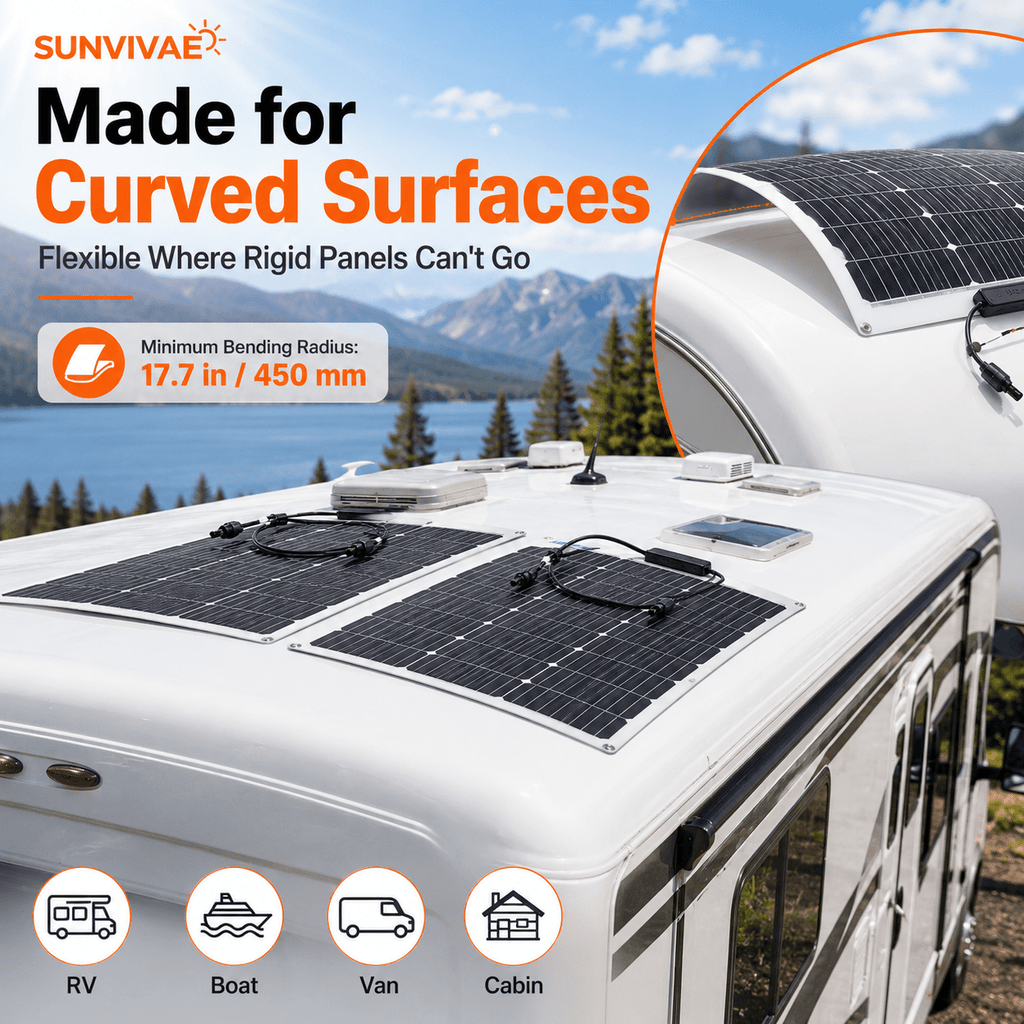

A minimum bending radius of 450 mm allows each semi-flexible panel to follow compatible gently curved surfaces without the bulk of a conventional framed module.
Curved-Surface Ready
Designed for gently curved RV, campervan, marine and cabin installations where a rigid frame may be inconvenient.
Lightweight & Slim
Each panel weighs approximately 4.4 lb and is about 0.12 in thick, helping reduce installation weight and visual bulk.
Efficient 9BB Cells
9-busbar monocrystalline cell construction delivers up to 23% cell efficiency while helping reduce current-path resistance.

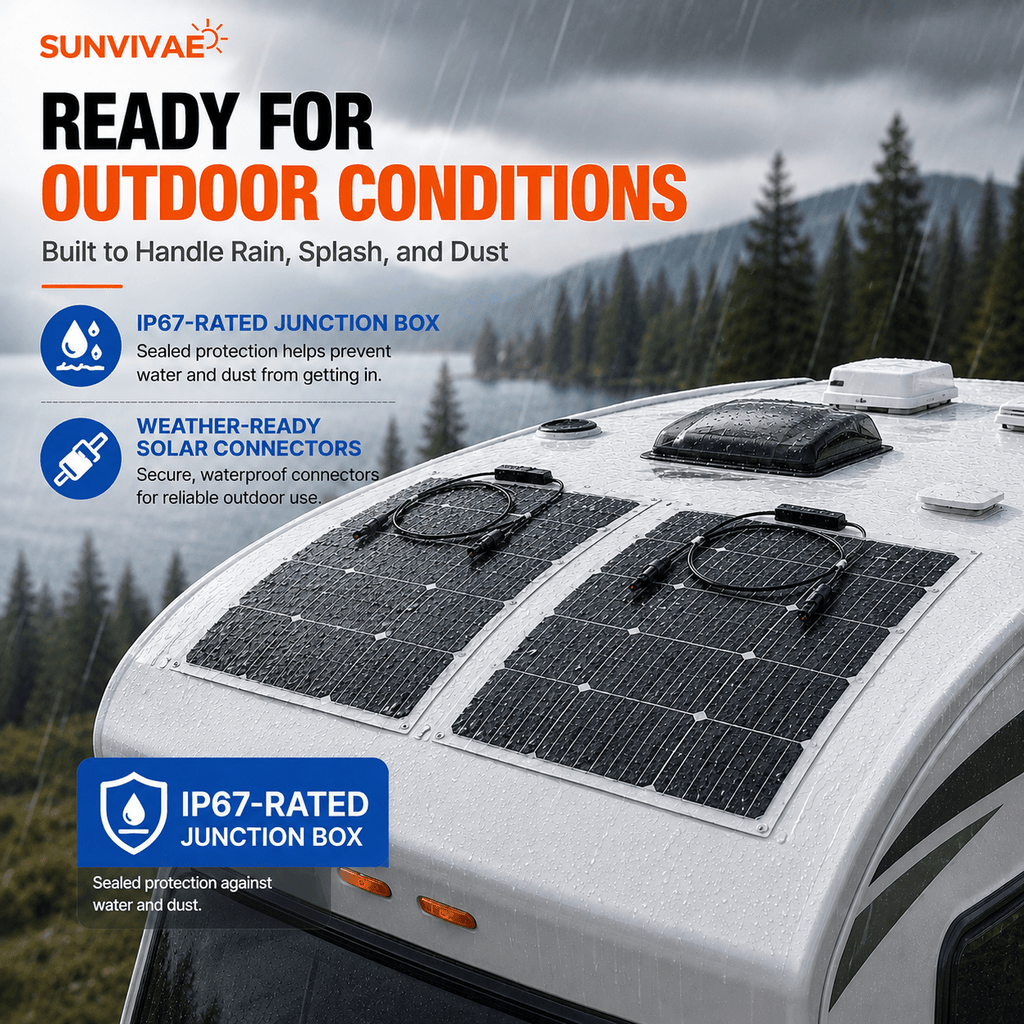

Outdoor Construction

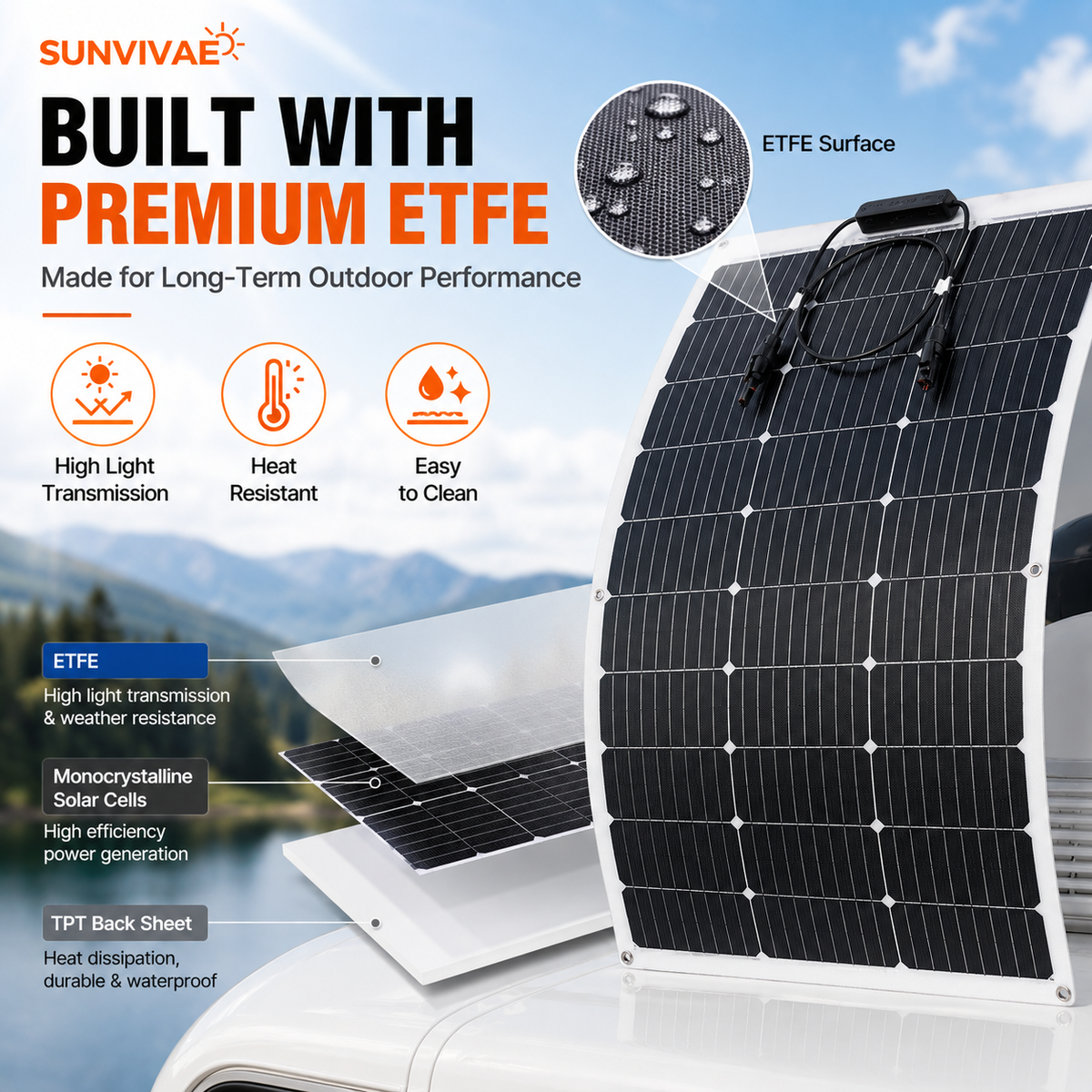

ETFE Protection, Built for the Journey
An ETFE front surface offers high light transmission and easier cleaning, while the TPT backing supports heat dissipation and outdoor durability. The junction box is rated IP67 for protection against dust and water ingress.
- ETFE laminated surface
- TPT backsheet
- IP67-rated junction box
- Weather-resistant solar connectors
- Pre-drilled eyelets for installation flexibility
IP67 applies to the junction box as specified. It does not mean the complete installed system can be submerged. Connections and cable entries must be correctly sealed.
Where It Works
One Set. More Off-Grid Possibilities.
RV & Van
Low-profile roof solar for compatible campers and conversions.
Boat & Marine
Lightweight generation for suitable marine power systems.
Cabin & Shed
Expand a properly designed remote battery system.
Custom Projects
Use on compatible flat or gently curved mounting surfaces.

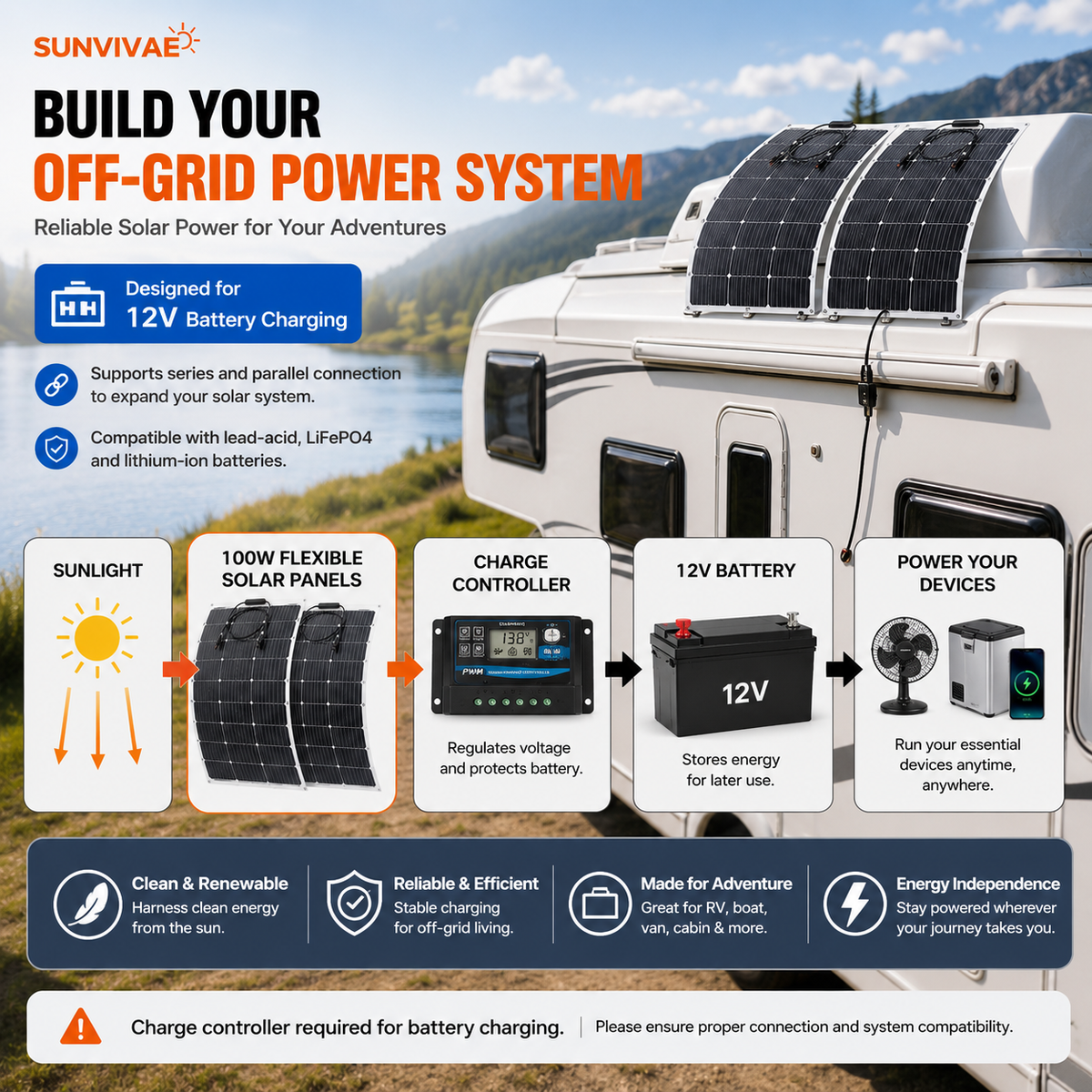

Build a Complete System
Solar Panel to Stored Power
These panels generate electricity but do not store it. Battery charging requires a correctly sized charge controller and a compatible battery system.
For a 12V battery bank, panels are commonly wired in parallel; series or parallel configuration must stay within the charge controller's voltage and current limits.

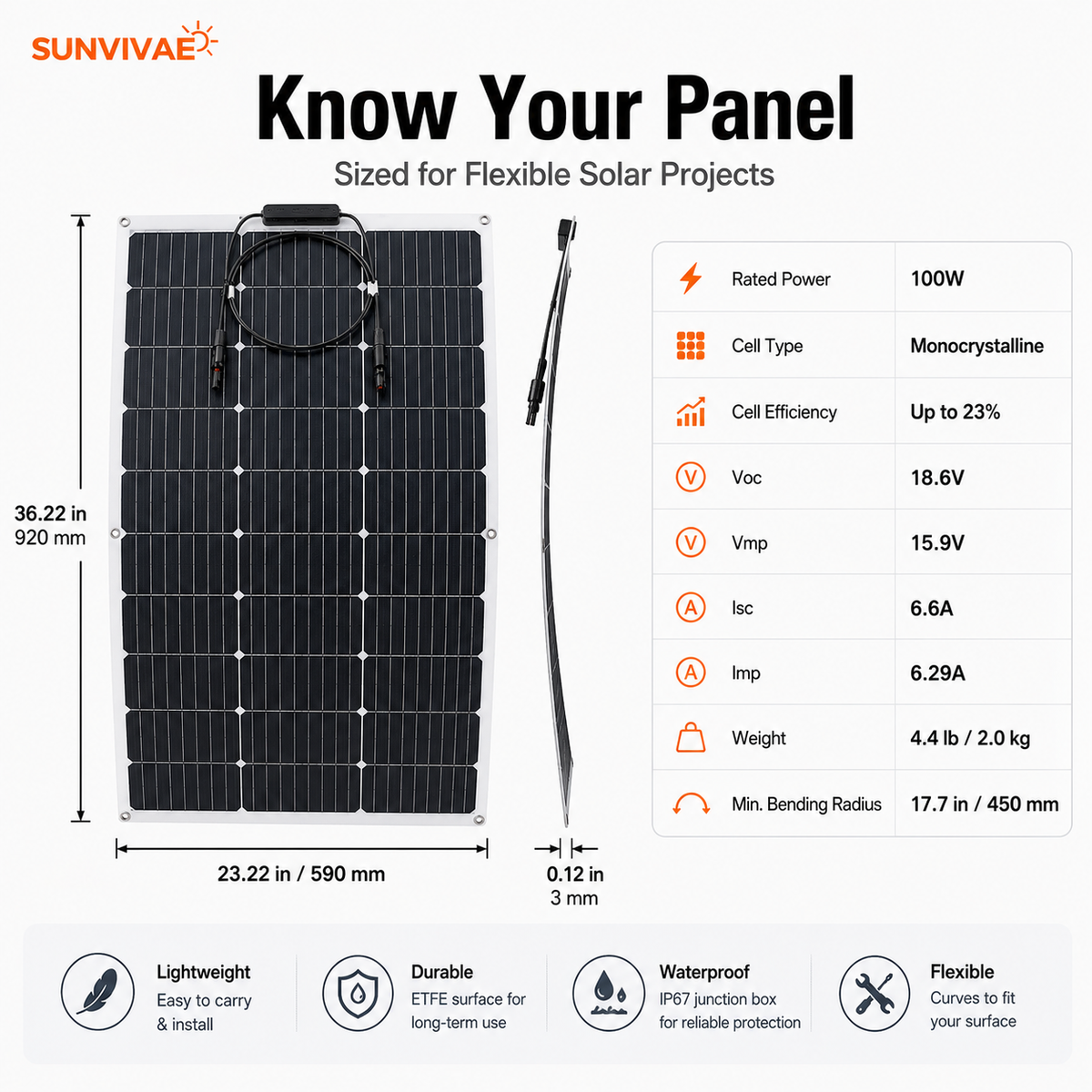

Technical Details
Specifications
Electrical and physical specifications shown below are for one 100W panel unless otherwise noted.
| Package | 2 × 100W panels |
|---|---|
| Total rated power | 200W |
| Rated power per panel | 100W |
| Cell type | 9BB monocrystalline |
| Cell efficiency | Up to 23% |
| Open-circuit voltage (Voc) | 18.6V |
| Max. power voltage (Vmp) | 15.9V |
| Short-circuit current (Isc) | 6.6A |
| Max. power current (Imp) | 6.29A |
| Panel dimensions | 36.22 × 23.22 × 0.12 in 920 × 590 × 3 mm |
| Weight per panel | 4.4 lb / 2.0 kg |
| Minimum bending radius | 17.7 in / 450 mm |
| Junction box rating | IP67 |
Actual output varies with sunlight intensity, panel angle, temperature, shading, wiring and system losses. Solar-cell corner shape may vary by production batch without changing rated function or connection compatibility.
Before Installation
Plan the System, Then Mount
Confirm Compatibility
Verify controller input limits, battery chemistry and system voltage before connecting either panel.
Avoid Excessive Bending
Do not fold, crease, step on or bend the module tighter than its specified minimum radius.

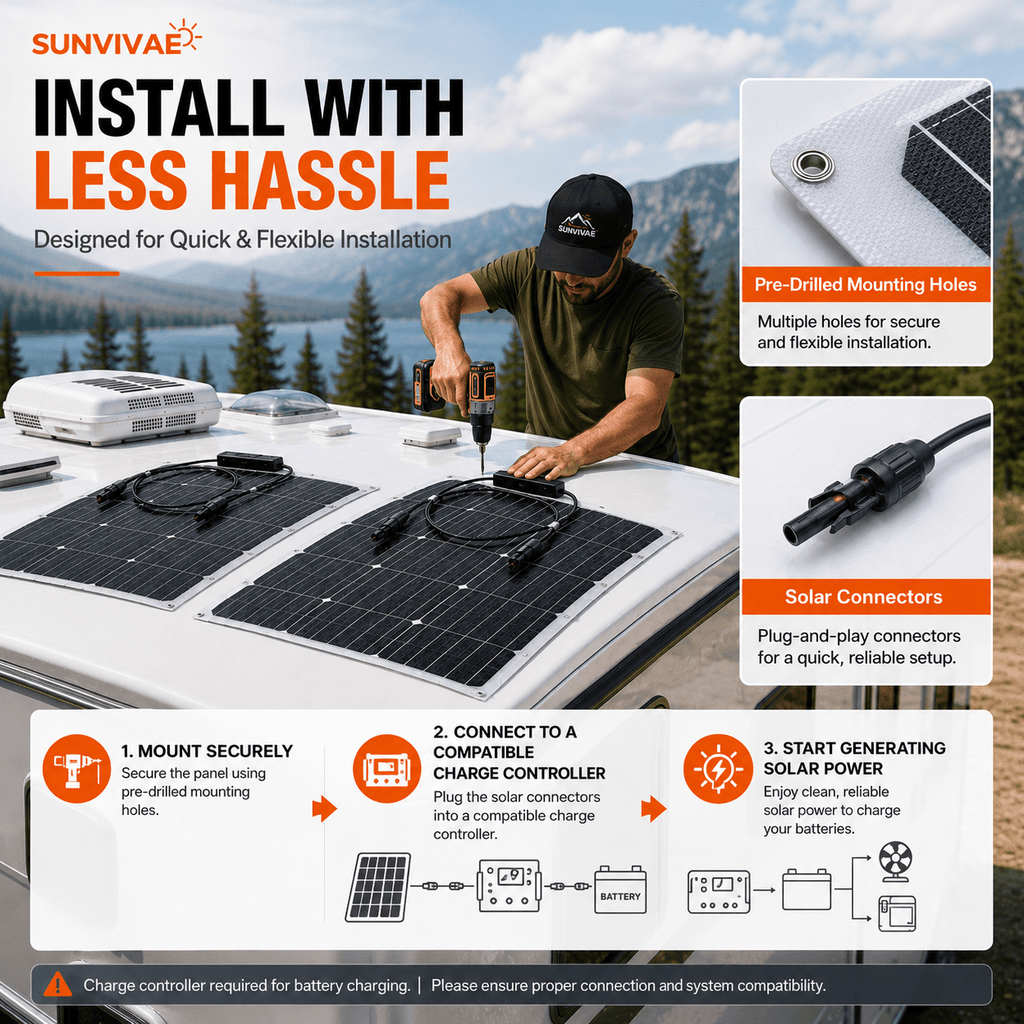

Mount Securely
Use a mounting method suitable for the surface, vehicle speed, wind exposure, heat dissipation and local conditions. Professional installation is recommended.
Frequently Asked Questions
Good to Know
Is this a 100W or 200W product?
This listing is a two-panel set. Each panel is rated at 100W, providing 200W of combined nominal solar capacity.
Can I connect the panels to a 12V battery?
Yes, when used with a compatible solar charge controller. Do not connect the panels directly to a battery. Confirm wiring configuration, polarity, controller ratings and battery charging requirements first.
Can the two panels be wired in series or parallel?
They support system expansion through series or parallel wiring. The correct configuration depends on your charge controller and battery bank. Never exceed the controller's maximum PV input voltage or current.
Does the set include a battery or charge controller?
No. This listing is for two flexible solar panels unless the package selection explicitly states otherwise.
Will the panels always produce 200W?
200W is the combined rated capacity under standard test conditions. Real-world power changes with weather, season, angle, temperature, shading, cleanliness and system efficiency.
